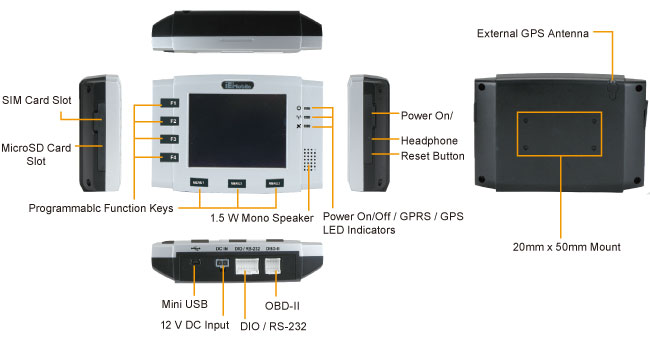

Product Description The VTT-1000 is a high performing, low power consumption vehicle tracking terminal based on ARM 400 MHz CPU and pre-installed with Windows® CE 6.0. A 3.5” TFT LCD touch screen display with IP54 compliant housing and shock and vibration protection makes it a highly compact and rugged device suitable for the vehicle environment. Featuring built-in GSM / GPRS with antenna and a GPS receiver, the VTT-1000 makes an excellent in-vehicle and tracking system.

---

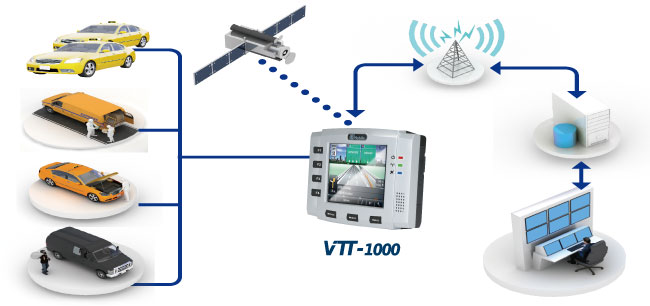

Applications With a compact, rugged, high performance, and low power consumption design, the VTT-1000 is a suitable vehicle tracking terminal for vehicles of all types. Applications include: - Fleet Management System - Real-Time Vehicle Diagnostic - Location-Based Services - Voice over IP (VoIP) Communication - In-Vehicle Infotainment - Emergency and Security Services

---

Key Features

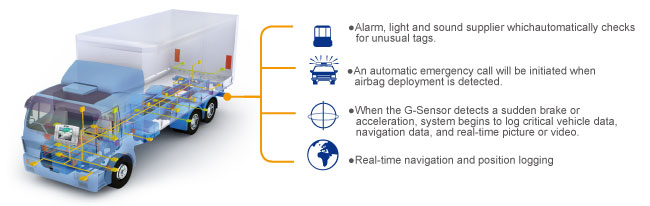

Built-in Sensors, I/O, and OBD-II Support Built-in temperature sensor, G-sensor, E-compass, and digital I/O enables the VTT-1000 to perform advanced vehicle monitoring and control applications. In addition, the VTT-1000 comes with an OBD-II connector that supports the most common data transfer protocols and standards in use today.

---

GSM/GPRS Communication and GPS Receiver The VTT-1000 is equipped with a Cinterion MC55i wireless module and built-in antenna for machine-to-machine (M2M) communication over GPRS. The MC55i is awarded full type approval and certified by global carriers and operators. It is optimized with quad-band technology for worldwide roaming. Together with the SiRF Star III 20-channel Global Positioning System (GPS) receiver, the VTT-1000 is the perfect choice for vehicle tracking and management. ● Quad-Band GSM 850/900/1800/1900 MHz ● GPRS multi-slot class 10 ● GSM phase 2/2+ compliant ● TCP/IP stack access via AT commands ● Internet Services: TCP, UDP, HTTP, FTP, SMTP, POP3 ● Control via AT commands (Hayes 3GPP TS 27.007, TS 27.005) ● SIM Application Toolkit ● Specification for GPRS data transmission: - GPRS class 10: max. 86 kbps (DL) - Mobile station class B - PBCCH support - Coding schemes CS 1-4

---

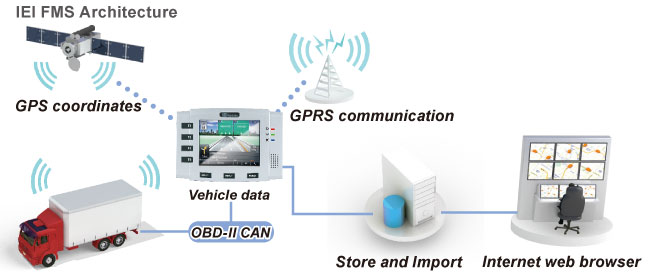

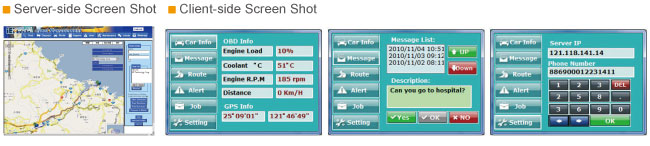

Software Development Kits and Built-in Software In addition to Windows® CE SDK, the VTT-1000 SDK contains easy to use API’s for application software development. The IEI FMS, a free fleet management demo software, based on client / server architecture, also comes along with this software development kit. It demonstrates the most basic function of fleet management software with the ability to gather, store, process, monitor, report on, and export information.

---

Product Information

Specifications Model VTT-1000 Display LCD Size 3.5" TFT-LCD Brightness (cd/m²) 450 cd/m² Max Resolution 320 x 240 Pixels QVGA Viewing Angle 50/55/60/60 Deg. Touch Screen 4-Wire Resistive Type Touch System CPU Samsung® S3C2416 ARM9 400 MHz Operating System Microsoft® Windows® CE 6.0 Memory 128 MB DDR2 133 MHz On-board Storage 256 MB NAND FLASH MicroSD Card Slot Communication Modem GSM/GPRS GPS GPS w/Internal Antenna Multimedia Audio 1 x Line-out 1 x 1.5 W Speaker LED Indicators & Buttons Indicators Power/2.5G/GPS Status LED Hot Key 7 x Programmeable Keys, Power Button, Reset Button I/O Interface USB 1 x Mini USB1.1 Serial 1 x OBD-II 1 x RS-232 Digital I/O 2 Inputs / 2 Outputs Power Cigarette Lighter Power Cigarette Lighter Power Cable DC 9~36 V Power Adapter 12 V@1.5 A@18 W Environment Operating Temperature -20˚C to +70˚C Storage Temperature -30˚C to +80˚C Humidity 5%~95% Non-Condensing Drop Survival 1 M Environmental Protection IP54 compliant front panel (Water, dust and splash resistant) Certification CE/FCC/e-MARK Physical Characteristics Dimensions (LxWxH) (mm) 128 x 89 x 32 Weight 177 g

---

Dimensions (Unit: mm)

---

Ordering Information

Part No. Description VTT-1000-T35A/128MB-R10 3.5" 450cd/m² QVGA fanless Vehicle Computer with ARM S3C2416X40-Y640 400MHz CPU, 128MB SDRAM, GSM/GPRS, OBD-II, GPS, RoHs VTT-1000-T35A/128MB-00-R10 3.5" 450cd/m² QVGA fanless Vehicle Computer with ARM S3C2416X40-Y640 400MHz CPU, 128MB SDRAM, GSM/GPRS, OBD-II, GPS, without AC Adapter, RoHs

---

Packing List

Item Part Number Q'ty DIO / RS-232 Integrate Cable 32016-000300-100-RS 1 OBD-II Cable 32016-000400-100-RS 1 GPS Antenna 32502-000200-100-RS 1 Cigarette Lighter Power Cable 32002-003300-100-RS 1 AC Adapter 63040-010018-000-RS Exclusive for VTT-1000-T35A 128MB-R10 1 Uesr's Manual CD-ROM 7B000-000569-RS 1
